XB7 Series Industrial Robot
Faster, More Reliable, More Precise

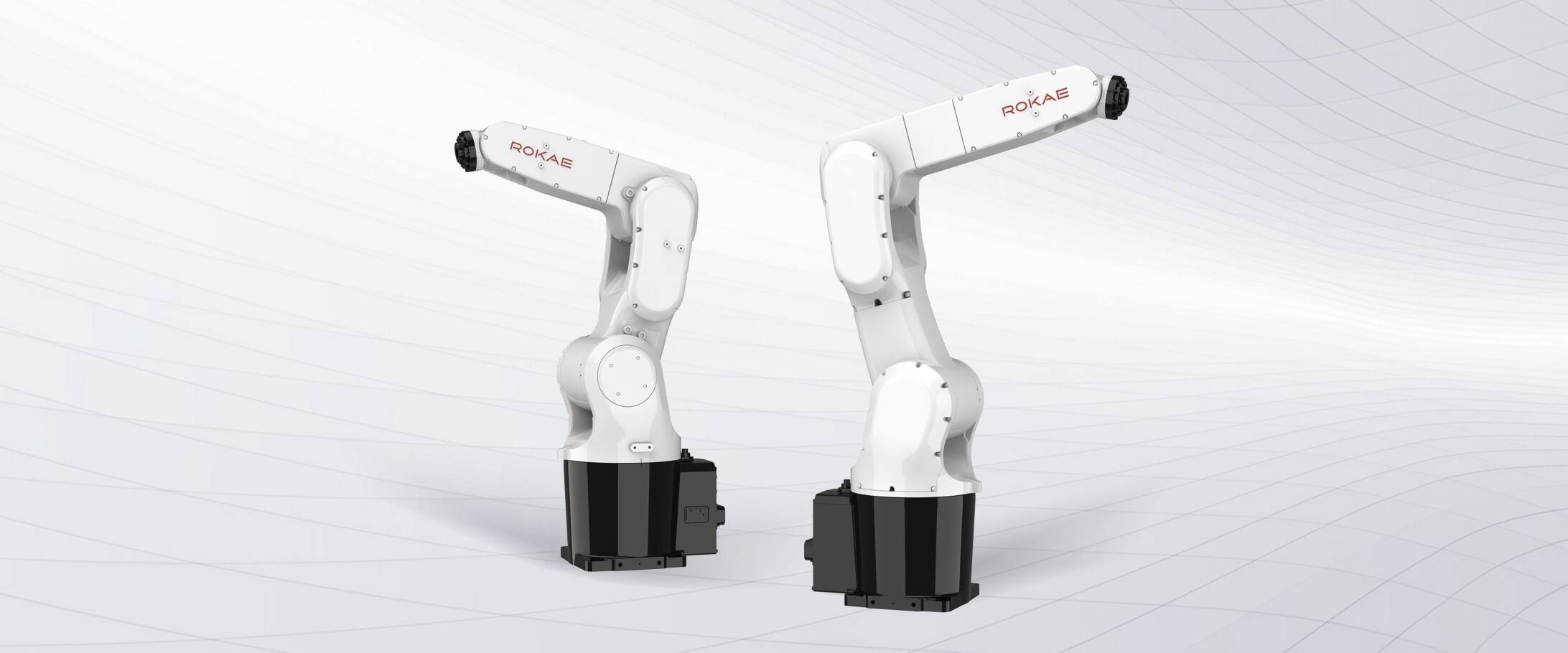

○ The XB7 series offers two reach choices. Among them, the model with 707mm reach features a hollow wrist design for easy and compact deployment.
○ Thanks to the incredible stability and best-in-class motion control, XB7 meets your every request on quality and takt time.
XB7 Series
Request A Demo
Data Overview

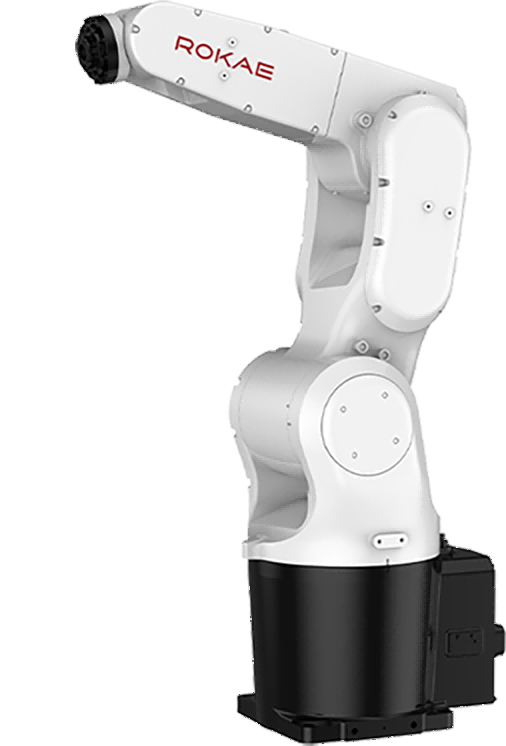

XB7L Specifications

Payload

7 kg

Weight

About 52 kg

Reach

906 mm

DOF

6

IP Rating

IP67

Drive Mode

AC servo

Repeatability

±0.03 mm

Operating

Temperature

0℃ to +40℃

Storage

Temperature

-10℃ to +55℃

Noise Level

≤70 dB(A)

AIR

4-Φ4,5bar

Signal

8 channels (30V, 0.5A)

Mounting

Method

Floor, Ceiling


Motion

Parameters

Axis

Range of Motion

Maximum Speed

Axis 1

-170° to +170°

355°/s

Axis 2

-96° to +130°

355°/s

Axis 3

-195° to +65°

355°/s

Axis 4

-170° to +170°

480°/s

Axis 5

-120° to +120°

450°/s

Axis 6

-360° to +360°

705°/s

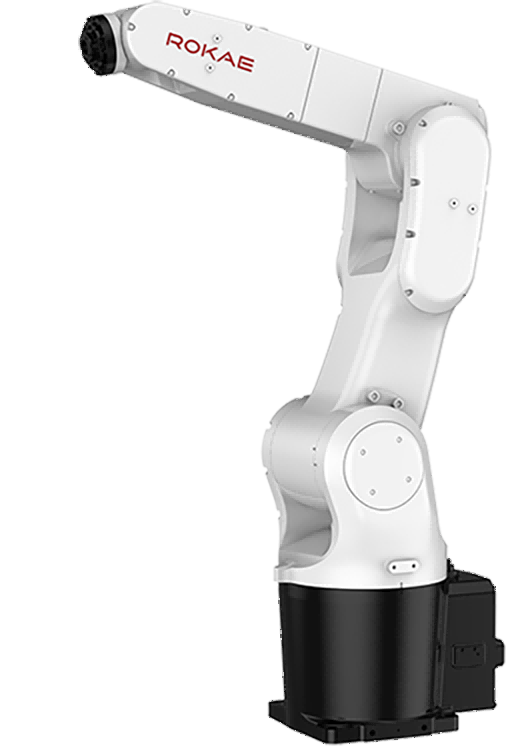

XB7 Specifications

Payload

7 kg

Weight

About 50 kg

Reach

707 mm

DOF

6

IP Rating

IP67

Drive Mode

AC servo

Repeatability

±0.02 mm

Operating

Temperature

0℃ to +40℃

Storage

Temperature

-10℃ to +55℃

Noise Level

≤70 dB(A)

AIR

4-Φ4,5bar

Signal

8 channels (30V, 0.5A)

Mounting

Method

Floor, Ceiling


Motion

Parameters

Axis

Range of Motion

Maximum Speed

Axis 1

-170° to +170°

440°/s

Axis 2

-96° to +135°

355°/s

Axis 3

-195° to +65°

440°/s

Axis 4

-170° to +170°

480°/s

Axis 5

-120° to +120°

450°/s

Axis 6

-360° to +360°

705°/s

Discover the variety of automation solutions by ROKAE
Key Industries for XB7 Series
How do we help our customers?

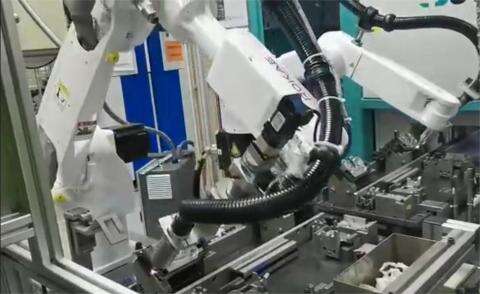

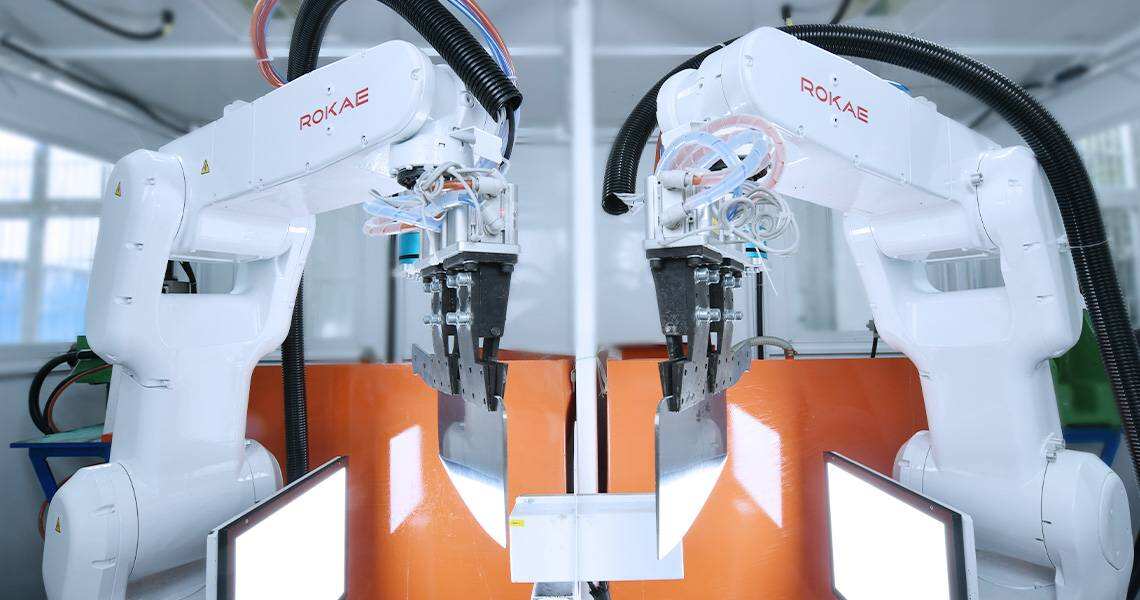

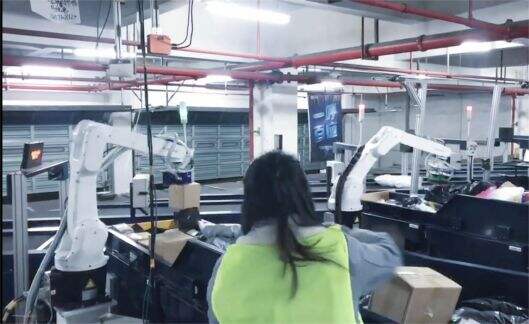

Applications for XB7 Series
