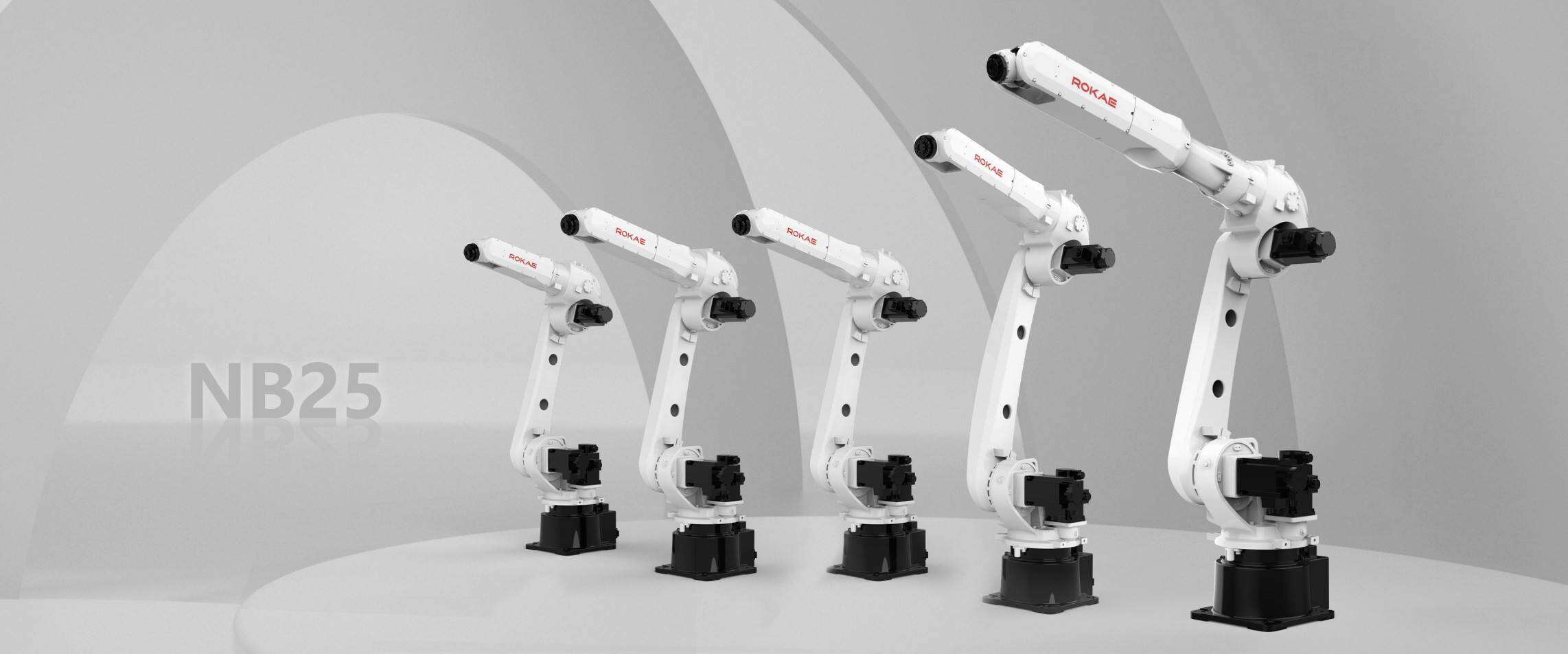

NB25 Series Industrial Robot
Faster, More Reliable, Higher Payload
○ NB25 Series robots increase the payload capacity by 25% based on the previous generation.
○ With high inertia motion characteristics, NB25 Series is more suitable for operation scenarios requiring large inertia and fast takt time.
○ IP67 high protection rating of wrists allows working in extreme environments thanks to the newly optimized sealing design.
NB25 Series
Request A Demo
Data Overview

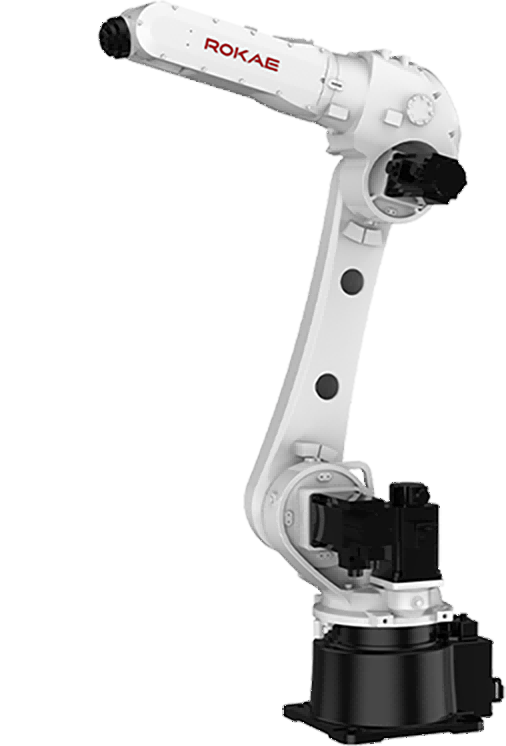

NB25-35/1.8 Specifications

Payload

35 kg

Weight

About 256 kg

Reach

1813 mm

DOF

6

IP Rating

IP65(Wrist IP67)

Drive Mode

AC servo

Repeatability

±0.05 mm

Operating

Temperature

0℃~+40℃

Storage

Temperature

-10℃ to +55℃

Noise Level

≤75 dB(A)

AIR

2-Φ8, 8bar

Signal

24 channels

(30V, 0.5A)

Mounting

Method

Floor, Ceiling


Motion

Parameters

Axis

Range of Motion

Maximum Speed

Axis 1

-180° to +180°

204°/s

Axis 2

-99° to +156°

186°/s

Axis 3

-200° to +75°

182°/s

Axis 4

-180° to +180°

310°/s

Axis 5

-135° to +135°

360°/s

Axis 6

-360° to +360°

444°/s

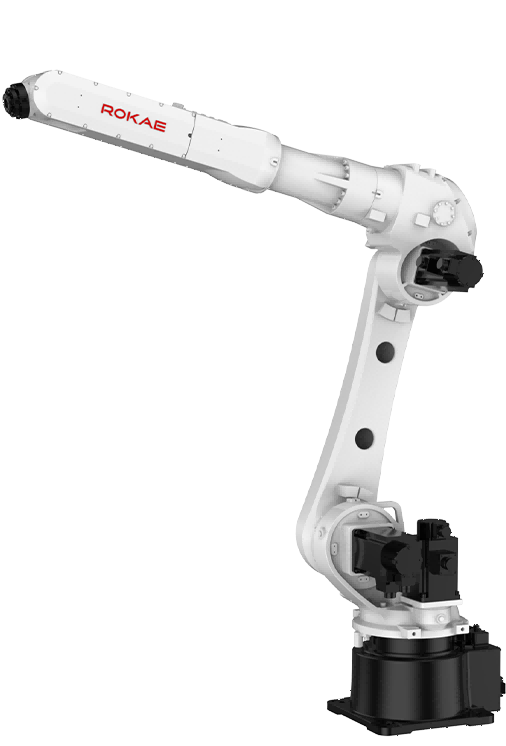

NB25-30/1.6 Specifications

Payload

30 kg

Weight

About 252 kg

Reach

1617 mm

DOF

6

IP Rating

IP65(Wrist IP67)

Drive Mode

AC servo

Repeatability

±0.05 mm

Operating

Temperature

0℃~+40℃

Storage

Temperature

-10℃ to +55℃

Noise Level

≤75 dB(A)

AIR

2-Φ8, 8bar

Signal

24 channels

(30V, 0.5A)

Mounting

Method

Floor, Ceiling


Motion

Parameters

Axis

Range of Motion

Maximum Speed

Axis 1

-180° to +180°

204°/s

Axis 2

-99° to +156°

186°/s

Axis 3

-200° to +75°

182°/s

Axis 4

-180° to +180°

492°/s

Axis 5

-135° to +135°

450°/s

Axis 6

-360° to +360°

705°/s

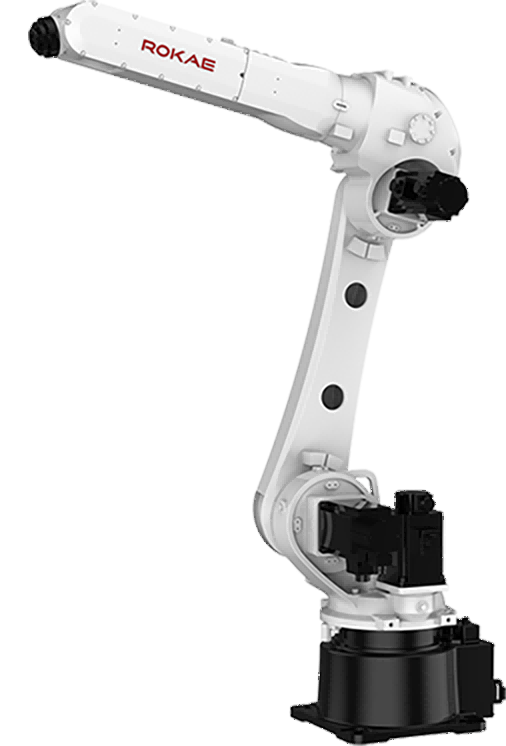

NB25-25/1.8 Specifications

Payload

25 kg

Weight

About 256 kg

Reach

1813 mm

DOF

6

IP Rating

IP65(Wrist IP67)

Drive Mode

AC servo

Repeatability

±0.05 mm

Operating

Temperature

0℃~+40℃

Storage

Temperature

-10℃ to +55℃

Noise Level

≤75 dB(A)

AIR

2-Φ8, 8bar

Signal

24 channels

(30V, 0.5A)

Mounting

Method

Floor, Ceiling


Motion

Parameters

Axis

Range of Motion

Maximum Speed

Axis 1

-180° to +180°

204°/s

Axis 2

-99° to +156°

186°/s

Axis 3

-200° to +75°

182°/s

Axis 4

-180° to +180°

492°/s

Axis 5

-135° to +135°

450°/s

Axis 6

-360° to +360°

705°/s

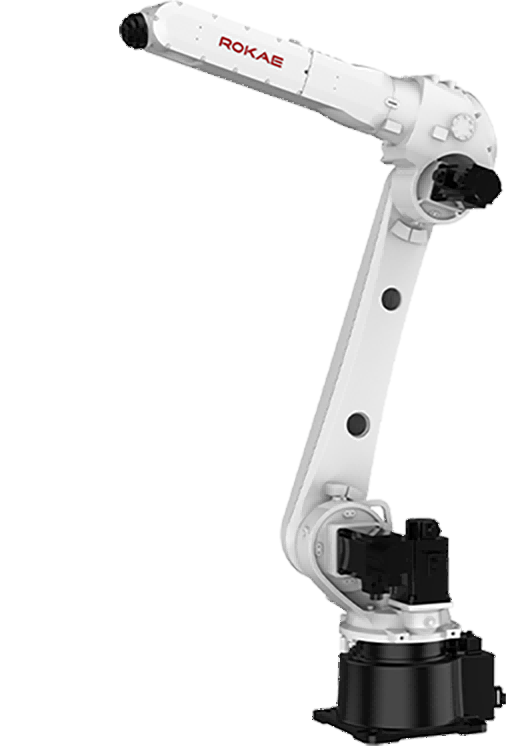

NB25-20/2.0 Specifications

Payload

20 kg

Weight

About 264kg

Reach

2013 mm

DOF

6

IP Rating

IP65(Wrist IP67)

Drive Mode

AC servo

Repeatability

±0.05 mm

Operating

Temperature

0℃~+40℃

Storage

Temperature

-10℃ to +55℃

Noise Level

≤75 dB(A)

AIR

2-Φ8, 8bar

Signal

24 channels

(30V, 0.5A)

Mounting

Method

Floor, Ceiling


Motion

Parameters

Axis

Range of Motion

Maximum Speed

Axis 1

-180° to +180°

204°/s

Axis 2

-99° to +156°

186°/s

Axis 3

-200° to +75°

182°/s

Axis 4

-180° to +180°

492°/s

Axis 5

-135° to +135°

450°/s

Axis 6

-360° to +360°

705°/s


NB25-12/2.1 Specifications

Payload

12 kg

Weight

About 262 kg

Reach

2110 mm

DOF

6

IP Rating

IP65(Wrist IP67)

Drive Mode

AC servo

Repeatability

±0.05 mm

Operating

Temperature

0℃~+40℃

Storage

Temperature

-10℃ to +55℃

Noise Level

≤75 dB(A)

AIR

2-Φ8, 8bar

Signal

24 channels

(30V, 0.5A)

Mounting

Method

Floor, Ceiling


Motion

Parameters

Axis

Range of Motion

Maximum Speed

Axis 1

-180° to +180°

204°/s

Axis 2

-99° to +156°

186°/s

Axis 3

-200° to +85°

182°/s

Axis 4

-180° to +180°

492°/s

Axis 5

-135° to +135°

450°/s

Axis 6

-360° to +360°

705°/s

Discover the variety of automation solutions by ROKAE
Key Industries for NB25 Series
How do we help our customers?

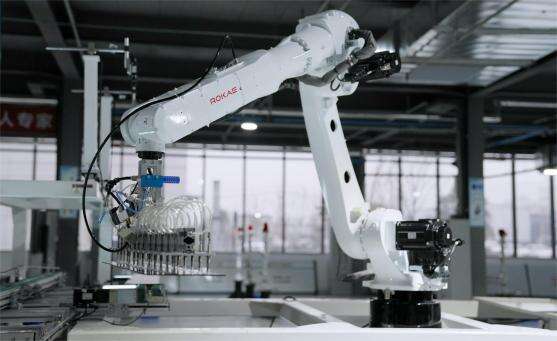

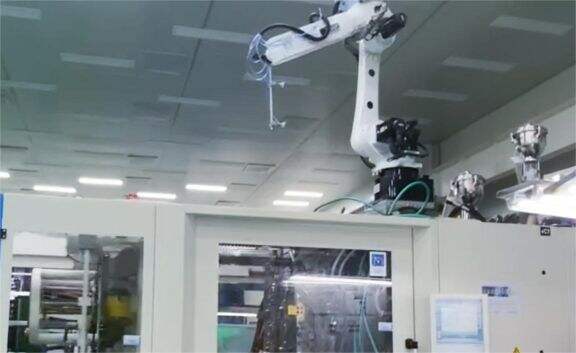

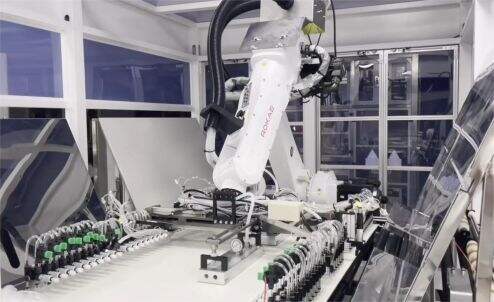

Applications for NB25 Series
